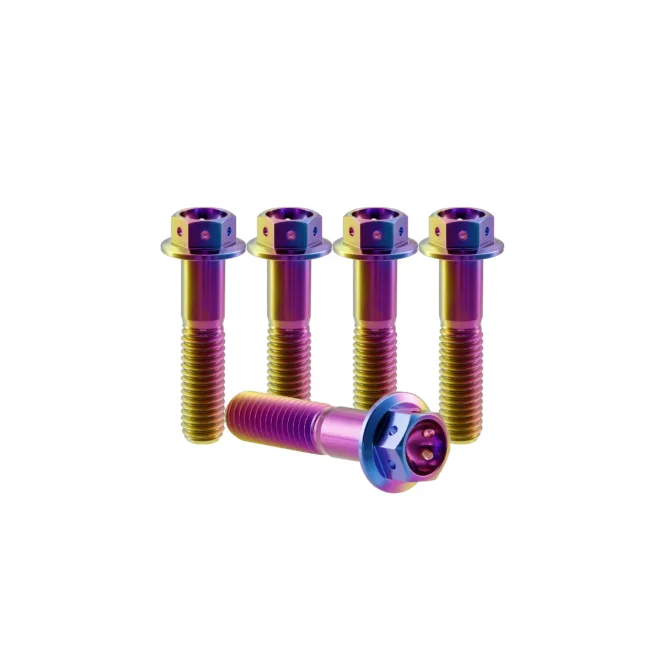

M10x1.25 Titanium Hex Head (Dual Drive) Flange Bolt Race Spec

SKU: 24188 Brand: TITANIUM BOLTS

Quantity: 5PCS per set

Material: Titanium GR5

$15$35

Clear

Titanium DualDrive Bolt
This is the only style of bolt where the head is included in the length measurement, as it sits below the surface, the head contributes to the overall length.

DualDrive features:   Head design that is compatible with both Socket and Allen Keys. Forged Bolts with rolled threads for superior strength. Grade 5 Titanium to maximise strength and durability with fantastic weight saving properties. Predrilled for lockwiring.
Made from 6AL-4V (Grade 5) Titanium are 45% lighter than steel bolts of the same size, thus reducing rotational mass on the vehicle. They are CNC’d from annealed titanium alloy and when tested to class 10.9 fastener proof load requirements, they showed no signs of fatigue or failure.

Material: Titanium Grade 5
Product Type: Bolt
Head Style: DualDrive
Thread Diameter: 10mm
Thread Pitch: 1.25mm
Thread Length: 26mm
Head Diameter: 17mm
Head Height: 9mm
Shank Length: 4mm
Socket Size: 12mm
Allen Key Size: 6mm
